HiFive
Unmatched
Rev B
Freedom Unmatched
Based on the success of the HiFive Unleashed and Linux software ecosystem enablement, HiFive Unmatched ushers in a new era of RISC-V Linux development with a high performance development platform in a standard PC form factor.

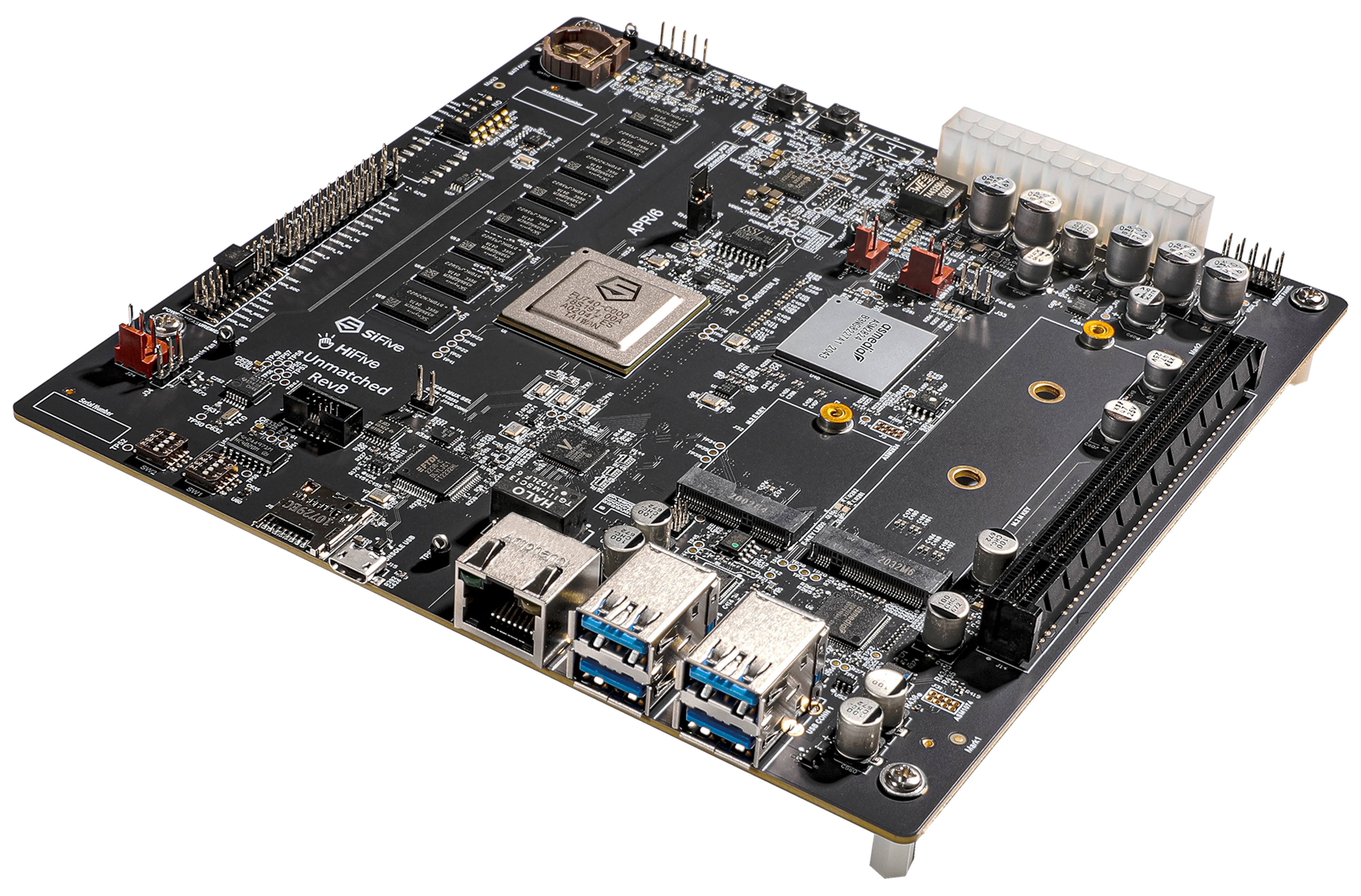

HiFive Unmatched Rev B
Features & Specifications
The development board is powered by the SiFive Freedom U740 (FU740), an SoC that includes a high-performance multi-core, 64-bit dual-issue, superscalar RISC-V processor (SiFive Essential™ U74-MC) with 16GB of DDR4, Gigabit Ethernet, PCIe expansion, USB 3, and M.2 sockets for Wi-Fi, Bluetooth and NVMe storage. A 5th core (a SiFive Essential S71 monitor core) is available for real time applications. SiFive Mix+Match technology offers a potent combination of application and real-time processing. The S71 (RV64IMAC) can service auxiliary functions and cooperate with the U74-MC cluster, making this an ideal heterogeneous software development platform where Linux and a RTOS can co-exist.
The updated HiFive Unmatched Rev. B boards are available on the Mouser website here and are ready for fulfillment from the warehouse in a couple of weeks from the time an order is placed.
SoC
SiFive Freedom U740 SoC
Memory
16GB DDR4
Flash Memory
32MB Quad SPI Flash
Removable Storage
MicroSD Card
Networking
Gigabit Ethernet Port
User I/O
4x USB 3.2 Gen 1 Type A Ports (1 Charging Port)
1x MicroUSB Console Port
Expansion Capabilities
x16 PCIe® Gen 3 Expansion Slot (8-lanes Useable)
M.2 M-Key Slot (PCIe Gen 3 x4) for NVME 2280 SSD Module
M.2 E-Key Slot (PCIe Gen 3 x1) for Wi-Fi / Bluetooth Module
Board Form Factor
Industry Standard Mini-ITX
Dimensions
170 mm
Long
170 mm
Wide
Using HiFive Unmatched Rev B
Documentation & Support
HiFive Unmatched Rev B Product Brief
HiFive Unmatched Rev B Datasheet
Getting Started Guide
[EN] [FR] [ES] [IT] [DE] [PL] [NL] [SV] [JP] [ZH]
Advantages of HiFive
Unmatched Rev B
If you’re a serious software developer, kernel developer, or Linux hacker, we can think of a few reasons to use this board:
- Port software to the RISC‑V platform
- Evaluate the SiFive U74‑MC SoC
- Want multi-core, Linux-capable RISC‑V hardware
- Want to support open source hardware
- Need to create the next great thing!
