Freedom Unmatched

HiFive Unmatched

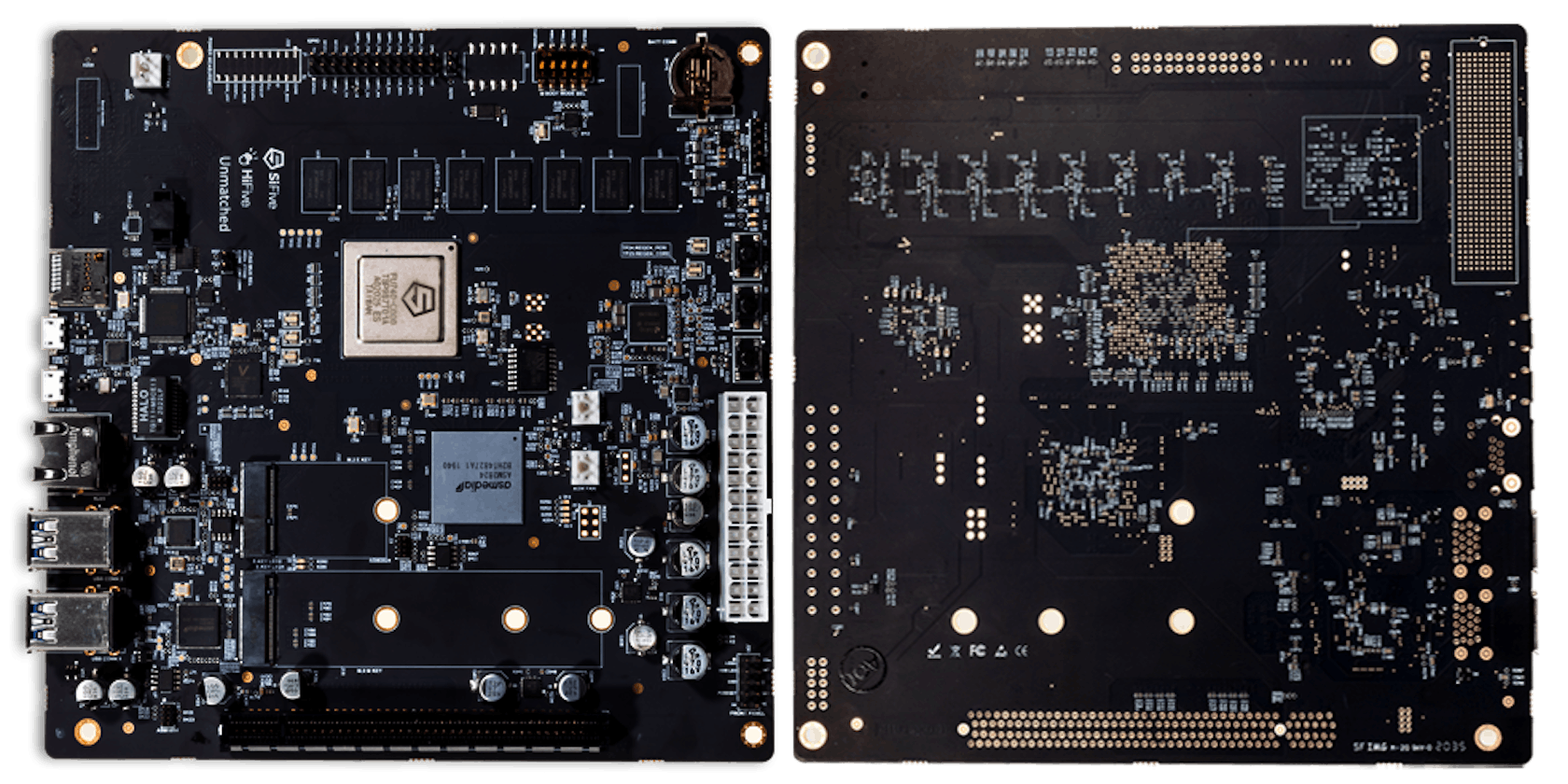

Based on the success of the HiFive Unleashed and Linux software ecosystem enablement, the HiFive Unmatched ushers in a new era of RISC-V Linux development with a high performance development platform in a standard PC form factor. The development board is powered by the SiFive Freedom U740 (FU740), an SoC that includes a high-performance multi-core, 64-bit dual-issue, superscalar RISC-V processor (SiFive Essential™ U74-MC) with 16GB of DDR4, Gigabit Ethernet, PCIe expansion, USB 3, and M.2 sockets for Wi-Fi, Bluetooth and NVMe storage. A 5th core (a SiFIve Essential S71 monitor core) is available for real time applications. SiFive Mix+Match technology offers a potent combination of application and real-time processing. The S71 (RV64IMAC) can service auxiliary functions and cooperate with the U74-MC cluster, making this an ideal heterogeneous software development platform where Linux and a RTOS can co-exist.

NOTE: Due to incredible customer demand, we quickly sold out of our production run of HiFive Unmatched boards; with COVID-related supply chain issues, we have decided to focus on the upcoming, more powerful development system based on the Horse Creek SoC and platform co-developed with Intel rather than trying to restart HiFive Unmatched production. If you’d like to keep up with Horse Creek-related news, you can register to be notified of any updates.

HiFive Unmatched Features
& Specifications


SiFive Freedom U740 SoC



Flash Memory

32MB Quad SPI Flash

Removable Storage

MicroSD Card


Gigabit Ethernet Port

User I/O

4x USB 3.2 Gen 1 Type A Ports (1 Charging Port)

1x MicroUSB Console Port

Expansion Capabilities

x16 PCIe® Gen 3 Expansion Slot (8-lanes Useable)

M.2 M-Key Slot (PCIe Gen 3 x4) for NVME 2280 SSD Module

M.2 E-Key Slot (PCIe Gen 3 x1) for Wi-Fi / Bluetooth Module

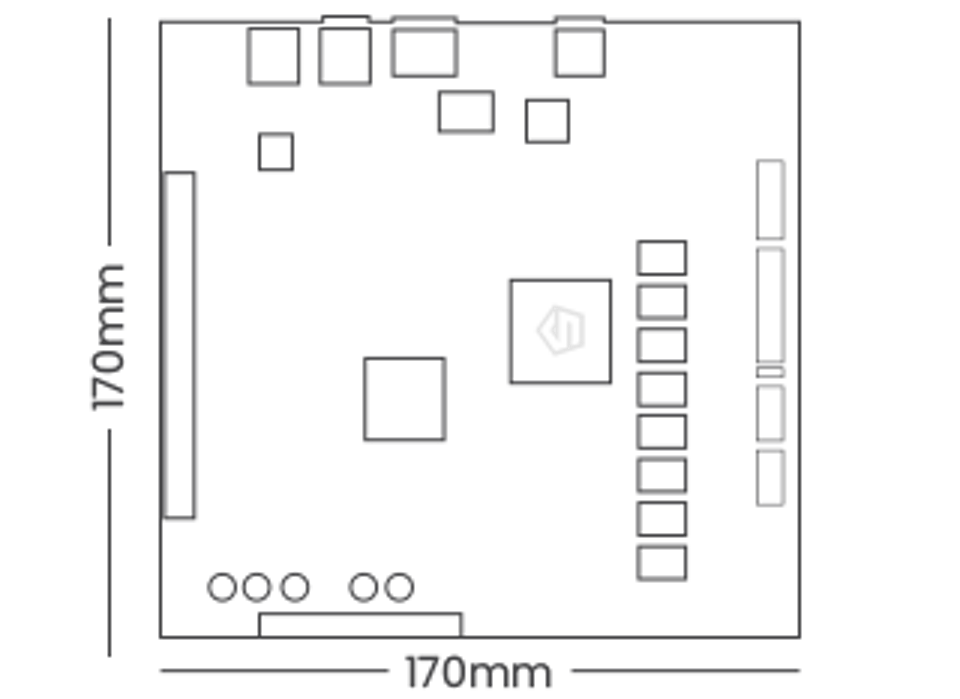

Board Form Factor

Industry Standard Mini-ITX


170 mm


170 mm


Using HiFive Unmatched


Schematics3D ModelBOMToolsFreedom U SDK

Advantages of HiFive Unmatched

If you’re a serious software developer, kernel developer, or Linux hacker, we can think of a few reasons to use this board:

  • Port software to the RISC‑V platform
  • Evaluate the SiFive U74‑MC SoC
  • Own the fastest RISC‑V SoC in the world
  • Want multi-core, Linux-capable RISC‑V hardware
  • Want to support open source hardware
  • Need to create the next great thing!
