E3 series

E34

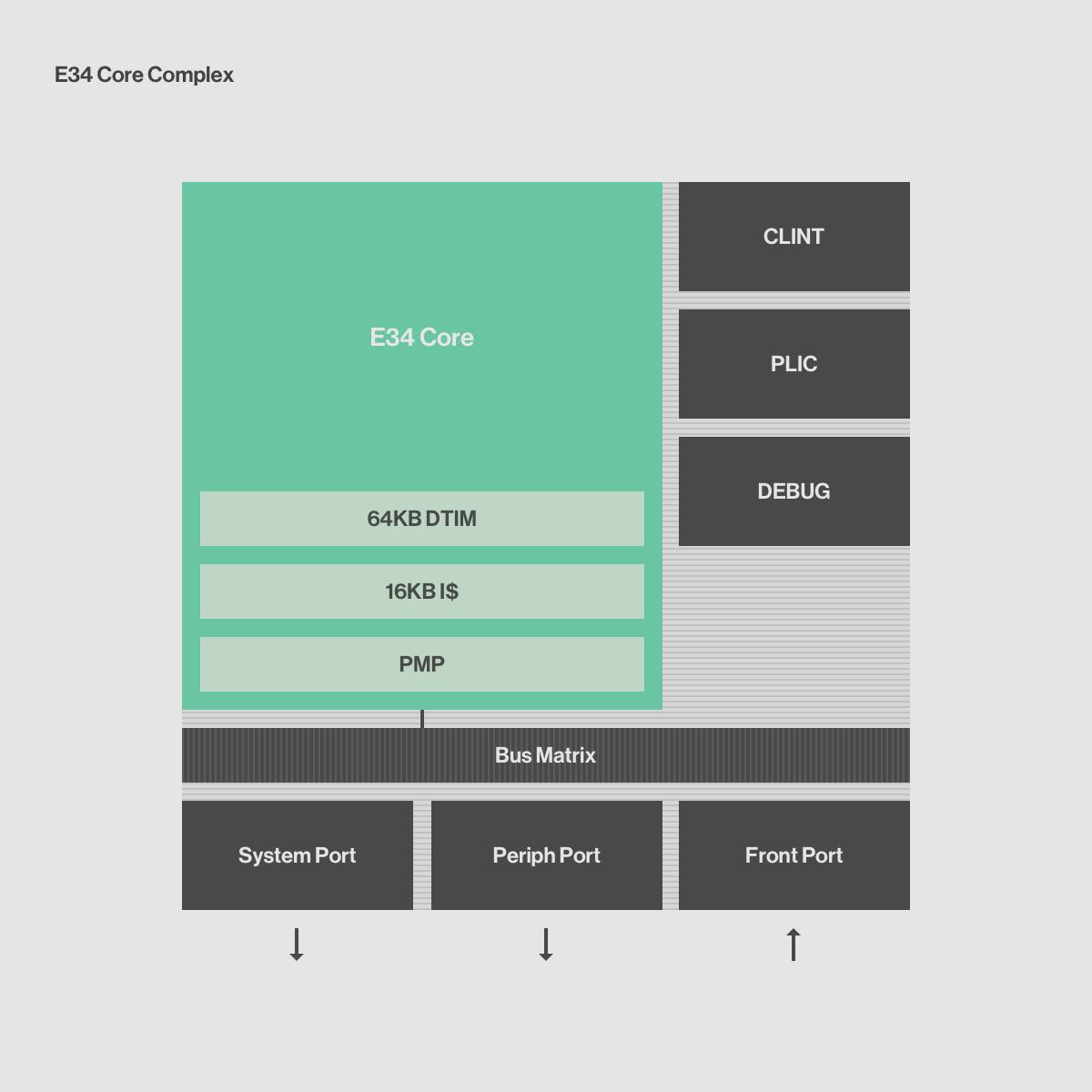

The SiFive E34 Standard Core adds single-precision floating-point to the SiFive E31 Standard Core, the world’s most deployed RISC-V core. The E34 enables advanced applications which require hardware floating-point capabilities such as signal processing and motor control.

E34
Key Features
  • Fully compliant with the RISC-V ISA specification
  • RV32IMAFC Support
    • RV32I – 32-bit RISC-V with 32 integer registers
    • Integer Multiplication and Division (M) support
    • Atomic (A) extension for high-performance, portable software
    • Floating-Point (F) extension for hardware floating-point instructions
    • Compressed (C) extension for better code density
  • Machine and User Mode Support
  • In-order, 5-6 stage variable pipeline
  • Advanced Memory Subsystem
    • 16KB, 2-way Instruction Cache
    • Instruction Tightly Integrated Memory (ITIM) option
    • Up to 64KB Data Tightly Integrated Memory (DTIM) support
  • Efficient and Flexible Interrupts
    • Local interrupts w/ vectored addresses — up to 16
    • Platform Level Interrupt Controller (PLIC) — 127 interrupts w/ 7 priority levels
    • RISC-V Core Local Interruptor (CLINT) — 1 timer, 1 SW
  • 8-Region Physical Memory Protection (PMP)
  • High performance TileLink Interface
  • 1.61 DMIPS/MHz
  • 3.01 CoreMark/MHz

Power, Performance, and Area

28nm HPC
55nm LP
Core-Only Areaa
0.055 mm²
0.15 mm²
Core Complex Areab
0.082 mm²
0.23 mm²
Frequency
870 MHz (worst)
370 MHz (worst)
Core Complex Power
4.8 mW
12.3 mW

Note: All area and power numbers do not include RAMs

a. Core only includes the core pipeline and L1 memory interfaces

b. Core Complex includes the Core plus PLIC w/128 irq and 7 priority levels, Debug w/ 4 hw breakpoints, CLINT, internal bus and ports

Compare to Cortex-R5F

E3 Series
Cortex-R5F
Architecture
32-bit
32-bit
Cores
Up to 8 Cores (fully-coherent)
Up to 2 Cores (non-coherent)
Interrupt Controller
Included; pre-integrated
Licensed separately; requires integration
L2 Cache Controller
Included (optional); pre-integrated
Licensed separately; requires integration

E34
Development Kit

Dev Kit Deliverables

  • RTL Evaluation
  • Test Bench RTL
  • Software Development Kit
  • FPGA Bitstream
  • Documentation
E3
Series Overview

E3 Series

The E3 Series is highly-integrated and feature-rich. It includes the E31 Core, which is the most widely deployed RISC‑V core in the world. E3 embedded cores have a 5-6 stage pipeline, offering a great balance between performance and efficiency.

E3 Series
Highlights

Key Features

  • Up to 8 coherent E3 Cores and optional L2 Cache Controller
  • Configurable core performance
  • Single precision Floating Point Unit
  • Level 1 Memory System and ECC
  • Number, type, and width of bus interfaces

Applications

  • Consumer Electronics
  • Motor Control
  • Industrial Automation
  • Storage
  • High-performance embedded

All Standard
Cores

Area
Standard Cores
ARM Comparison
E2 Series
M0, M0+, M3, M4, M23, M33
E3 Series
R4, R5
E7 Series
M7, R7, R8
S5 Series
R4, R5
S7 Series
M7, R7, R8
U5 Series
A5, A7, A35, A53
U7 Series
A55
Core Evaluation

From idea
to reality.

Ready to see your code in action? The E34 Development Kit enables free evaluation of SiFive RISC-V Core IP.

Key
Deliverables

Evaluation RTL

  • Full-Functional, synthesizable Verilog RTL
  • Run it in your own simulator
  • Simple, no-cost evaluation license
Start E34 Free Trial

FPGA Bitstream

  • Fully-functional SiFive RISC-V Core Complex with system peripherals
  • High Performance - 65 MHz emulation
  • Upload your own programs using the Freedom E SDK
  • Compatible with the Artix-7 Arty Evaluation Kit
