U5 series

U54-MC

The SiFive U54-MC Standard Core is the world’s first RISC-V application processor, capable of supporting full-featured operating systems such as Linux.

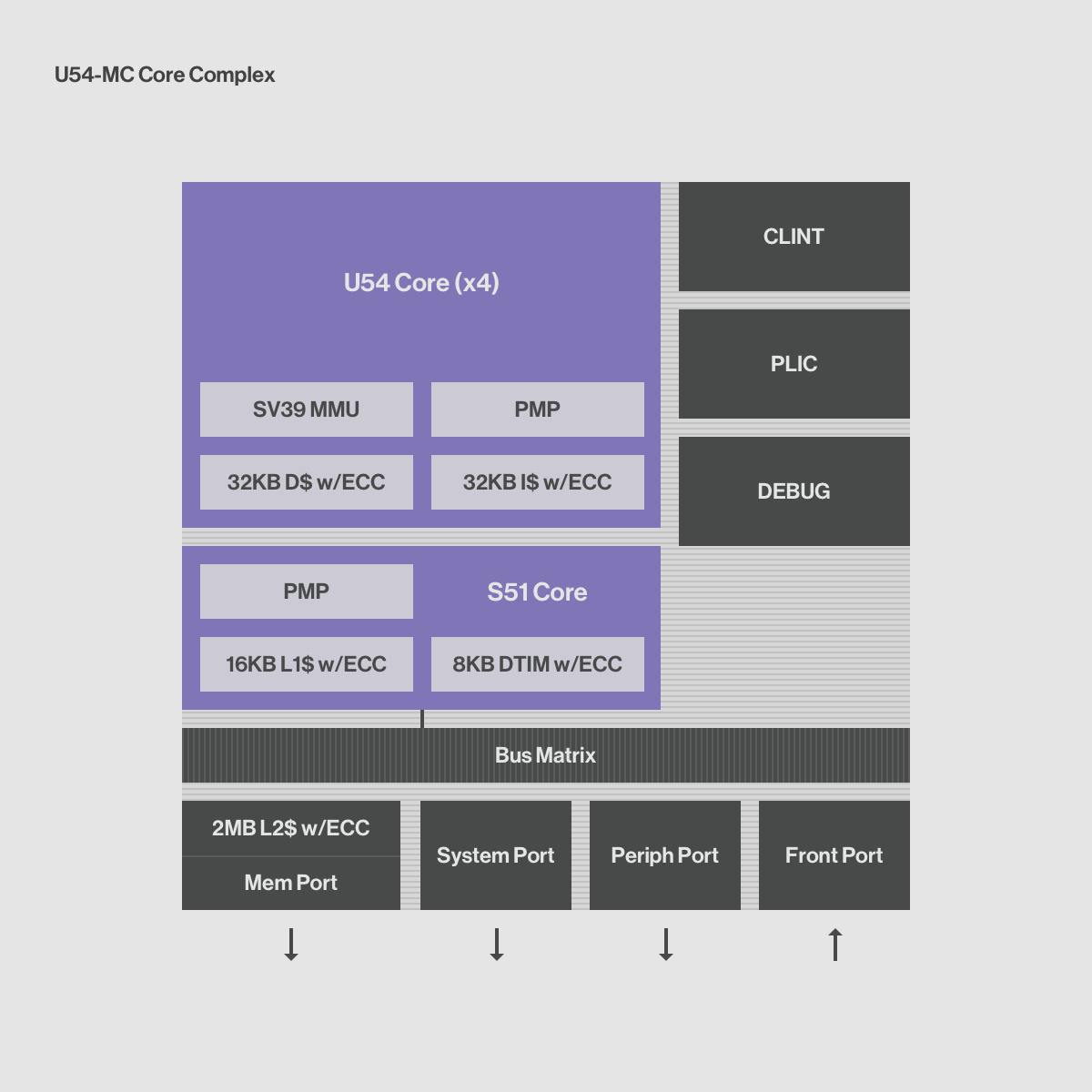

The U54-MC has 4x 64-bit U5 cores and 1x 64-bit S5 core—providing high performance with maximum efficiency. This core is an ideal choice for low-cost Linux applications such as IoT nodes and gateways, storage, and networking.

U54-MC
Key Features
  • Fully compliant with the RISC-V ISA specification
  • 4x RV64GC U54 Application Cores
    • 32KB L1 I-cache with ECC
    • 32KB L1 D-cache with ECC
    • 8 Region Physical Memory Protection
    • 48 Local Interrupts per core
    • Sv39 Virtual Memory support with 38 Physical Address bits
  • 1x RV64IMAC S51 Monitor Core
    • 16KB L1 I-Cache with ECC
    • 8KB DTIM with ECC
    • 8 Region Physical Memory Protection
    • 48 Local Interrupts
  • Fully Coherent TileLink Bus
  • Integrated 2MB L2 Cache with ECC
  • Real-time capabilities
    • Both the L1 Instruction Cache and the L2 Cache can be configured into high speed deterministic SRAMs
  • CLINT for multi-core timer and software interrupts
  • PLIC with support for up to 511 interrupts with 7 priority levels
  • Debug with instruction trace
  • U54 Performance
    • 2.87/1.7 DMIPS/MHz (Best Effort/Legal)
    • 2.75 CoreMark/MHz

Power, Performance,
and Area

28nm HPC
Core Only Areaa
0.234mm²
Core Complex Areab
0.538mm²
Frequencyc
Typical: 1.5GHz
Worst: 960MHz

a. Single U54 Core-only data, excludes SRAM; 85% utilization

b. Core Complex data includes single U54 core, 32KB I-Cache, 32KB D-Cache, PLIC, Debug

c. 12 track standard cells. Typical: TT Corner @ 0.9V, 25C, Worst: Slow/Slow, 0.81V, -40C

Compare to
Cortex A-53

U54-MC
Arm Cortex-A53
Instruction Set Architecture
RV64GC
M + S + U Mode
ARMv8-A, AArch32, AArch64
16-bit Instruction Support
Yes RV64C Instructions
Only in 32-bit AArch32 T32 Mode
Physical Memory Protection
Physical Memory Protection (PMP) and MMU
None, MMU only
Real-Time Capabilities
Fast deterministic memory (ITIM, L2-LIM)
Local Interrupts
Physical Memory Protection
None
Monitor Core
S51 Monitor Core
Licensed separately; requires integration
Interrupt Controller
Integrated
Licensed separately; requires integration

U54-MC
Development Kit

Dev Kit Deliverables

  • RTL Evaluation
  • Test Bench RTL
  • Software Development Kit
  • Documentation
U5
Series Overview

U5 Series

The U5 Series features a RISC‑V Linux-capable application processor that offers high performance with maximum efficiency. The U5 core has a 5-6 stage pipeline and supports virtual memory, enabling 64-bit RISC-V applications.

U5 Series
Highlights

Key Features

  • Up to 9 cores and optional L2 Cache Controller
  • Heterogeneous multi-core with a configurable number of U5 and S5 Cores pre-integrated in a single deliverable
  • U5 and S5 Core performance
  • L1 and L2 memory systems and optional ECC protection
  • Number, type, and width of bus interfaces

Applications

  • Low-cost Linux
  • Industrial
  • IoT
  • Storage
  • Networking
  • General-purpose embedded

All Standard
Cores

Area
Standard Cores
ARM Comparison
E2 Series
M0, M0+, M3, M4, M23, M33
E3 Series
R4, R5
E7 Series
M7, R7, R8
S2 Series
***
S5 Series
R4, R5
S7 Series
M7, R7, R8
U5 Series
A5, A7, A35, A53
U7 Series
A55
Core Evaluation

From idea to reality

Ready to see your code in action? The U54-MC Development Kit enables free evaluation of SiFive RISC-V Core IP.

Key
Deliverables

Evaluation RTL

  • Full-Functional, synthesizable Verilog RTL
  • Run it in your own simulator
  • Simple, no-cost evaluation license
