HBM2 / HBM2E IP Subsystem
SoC IP

HBM2 / HBM2E IP Subsystem

The HBM2 / HBM2E IP is suitable for applications involving graphics, high-performance computing, high-end networking, and communications that require very high bandwidth, lower latency and more density.

HBM2/2E PHY Specifications

Key Features

Integrated HBM controller and HBM PHY subsystem solution supporting HBM2 and HBM2E JEDEC spec for a wide range of technology and foundry nodes. As an early advocate of 2.5D and 3D ASIC design technologies and by leveraging its experience from the industry’s first multiple successful 2.5D SoC SiP demonstration, SiFive plays a key role in enabling industry applications that leverage the HBM 3D-stacked DRAM technology.

Download

HMB Product Brochure

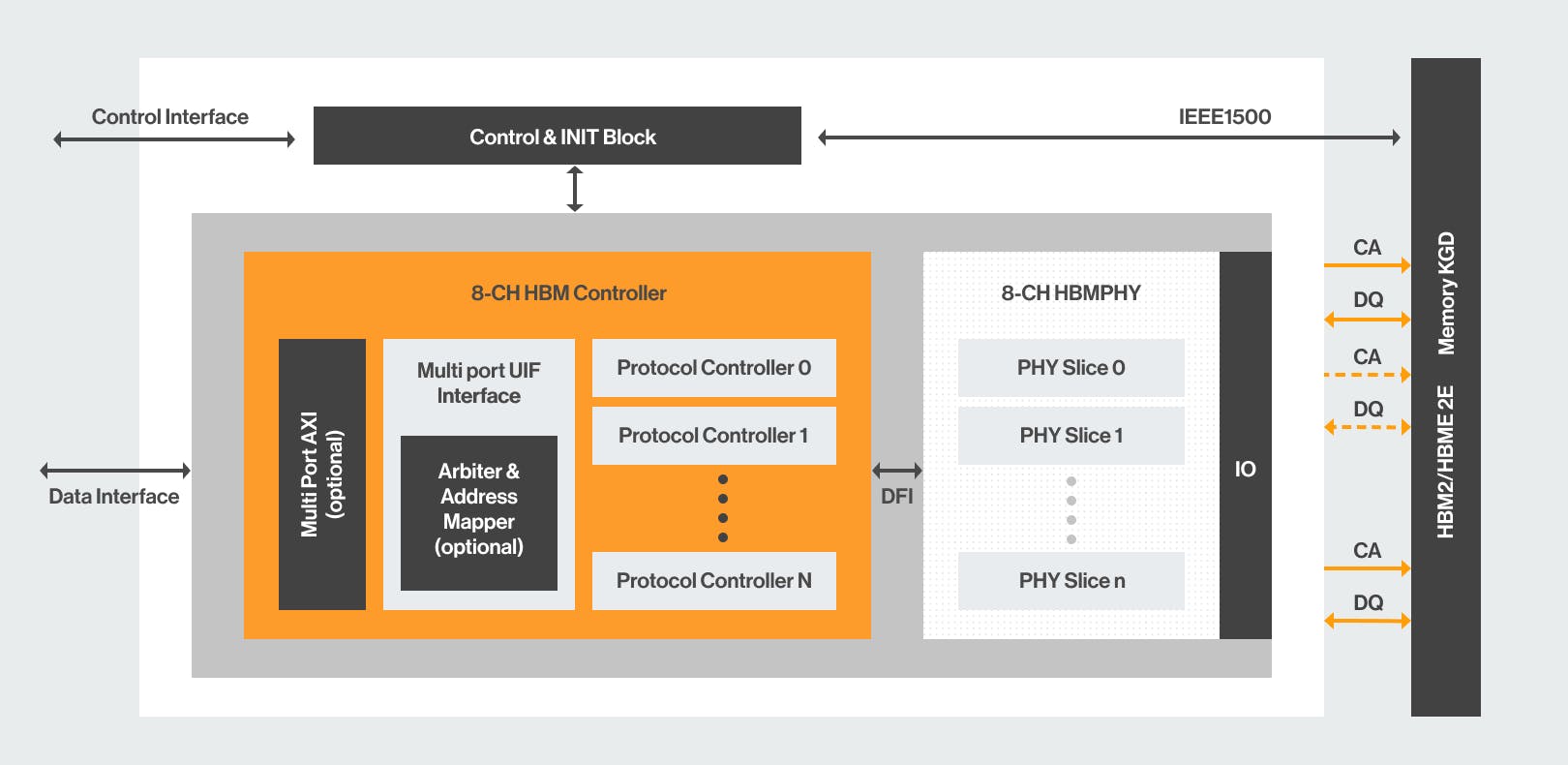

HBM2 / HBM2E IP Subsystem

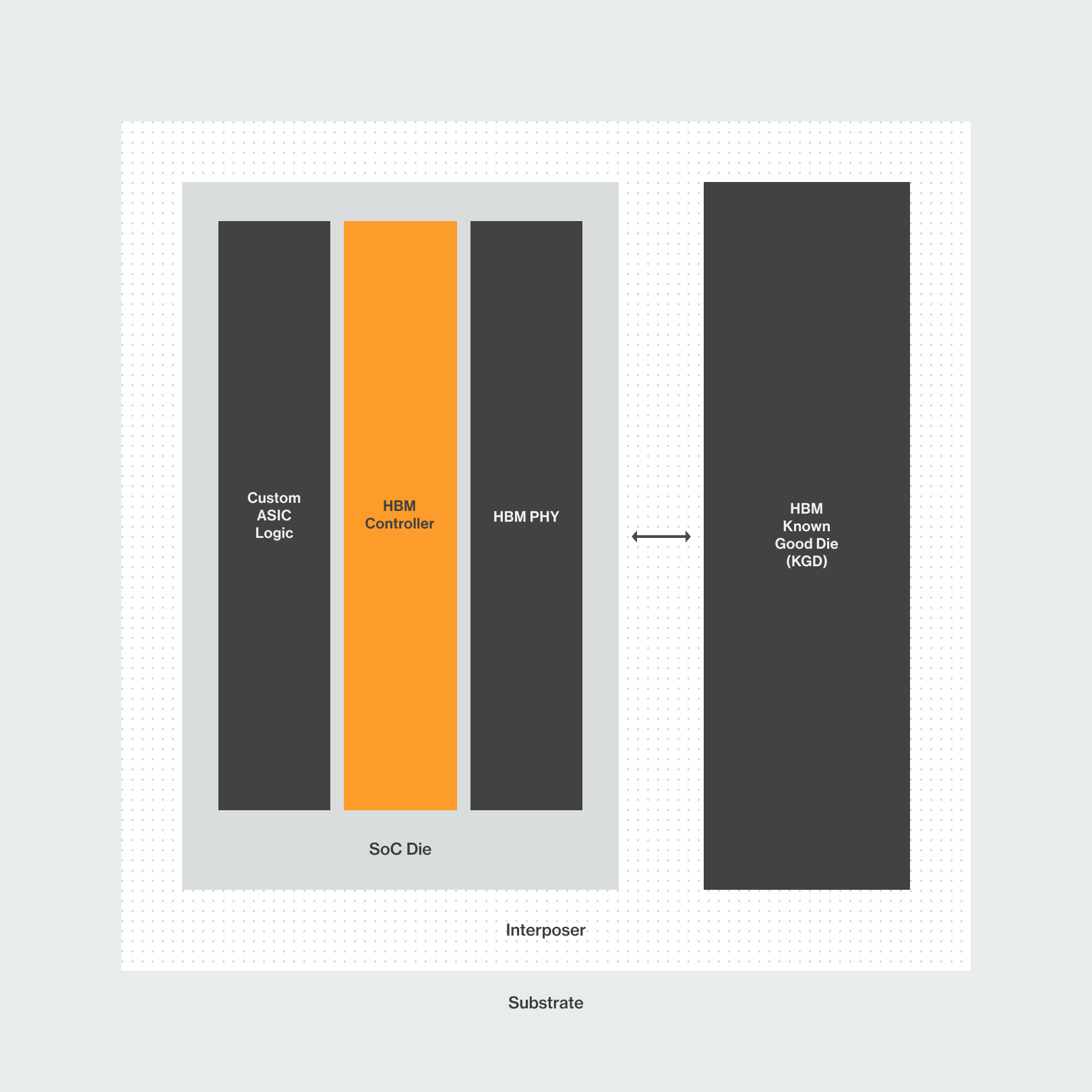

HBM2 / HBM2E ASIC SiP (System in Package)

Additional Details

Protocol Controller

  • JEDEC (JESD235B) HBM2/HBM2E DRAM specification compliant
  • Pseudo-channel mode support
  • Multi stack HBM2/2E memory support
  • Power down self-refresh modes
  • Low latency controller features
  • Per channel data rate – Up to 3.2Gbps/pin
  • Configurable independent channels
  • Memory access optimizations for bandwidth efficiency
  • DFI-like controller/PHY interface
  • Supports 1:1 & 2:1 PHY/controller frequency ratios
  • Memory die diagnostic features
  • JTAG connectivity for IEEE-1500 access, lane repair, training and loopback test modes
  • Multiple in-built test & diagnostic features

PHY Layer

  • Ultra-low latency
  • Easily portable across technologies
  • Includes I/O, PLL & DLL
  • Coarse and fine grain I/O training
  • Low-power HBM memory and PHY modes
  • Complies to ESD requirements
  • Loopback support for testability
  • JEDEC (JESD235B) HBM2/HBM2E DRAM specification compliant
  • Optional support for LLHBM
  • Process node supports – TSMC16/12nm, TSMC7nm, GF14/12nm, GF22FDx

Die-to-Die Interposer I/O

  • CMOS I/O with programmable drive strengths
  • 2Gbps/1GHz DDR with light output loading
  • Up to 5mm interposer trace length support meeting > 2Gbps per pin date rate
  • Electrically compatible with JDEC HBM2 spec
  • Optional differential receiver

Get in Touch

We'd like to hear from you. Share your vision with our dedicated sales team and we’ll shape a solution that fits your needs.

Customization

If you already have a specific SoC IP spec in mind, our team can help you to customize controller IP as per your requirements.
